Description
KMC CA550 Agricultural Conveyor Chain, 41.4mm Pitch, Straight Side Bar
KMC CA550 Agricultural Conveyor Chain, 41.4mm Pitch, Straight Side Bar is a high-performance conveyor-series chain specifically engineered for the rigors of agricultural environments. Featuring a 41.4mm pitch and a durable straight side bar design, this chain provides consistent, synchronized material transport. Manufactured by KMC, a leader in power transmission, this chain is built with hardened steel components to ensure superior resistance to wear, fatigue, and elongation in high-load settings.
Applications & Industries
This chain is the industry standard for:
- Agricultural Equipment: Corn gathering, forage harvesters, manure spreaders, and grain handling systems.
- Material Handling: Elevator feed stations and continuous conveyor systems.
- Industrial Transport: Environments requiring repetitive, synchronized, and heavy-duty mechanical movement.

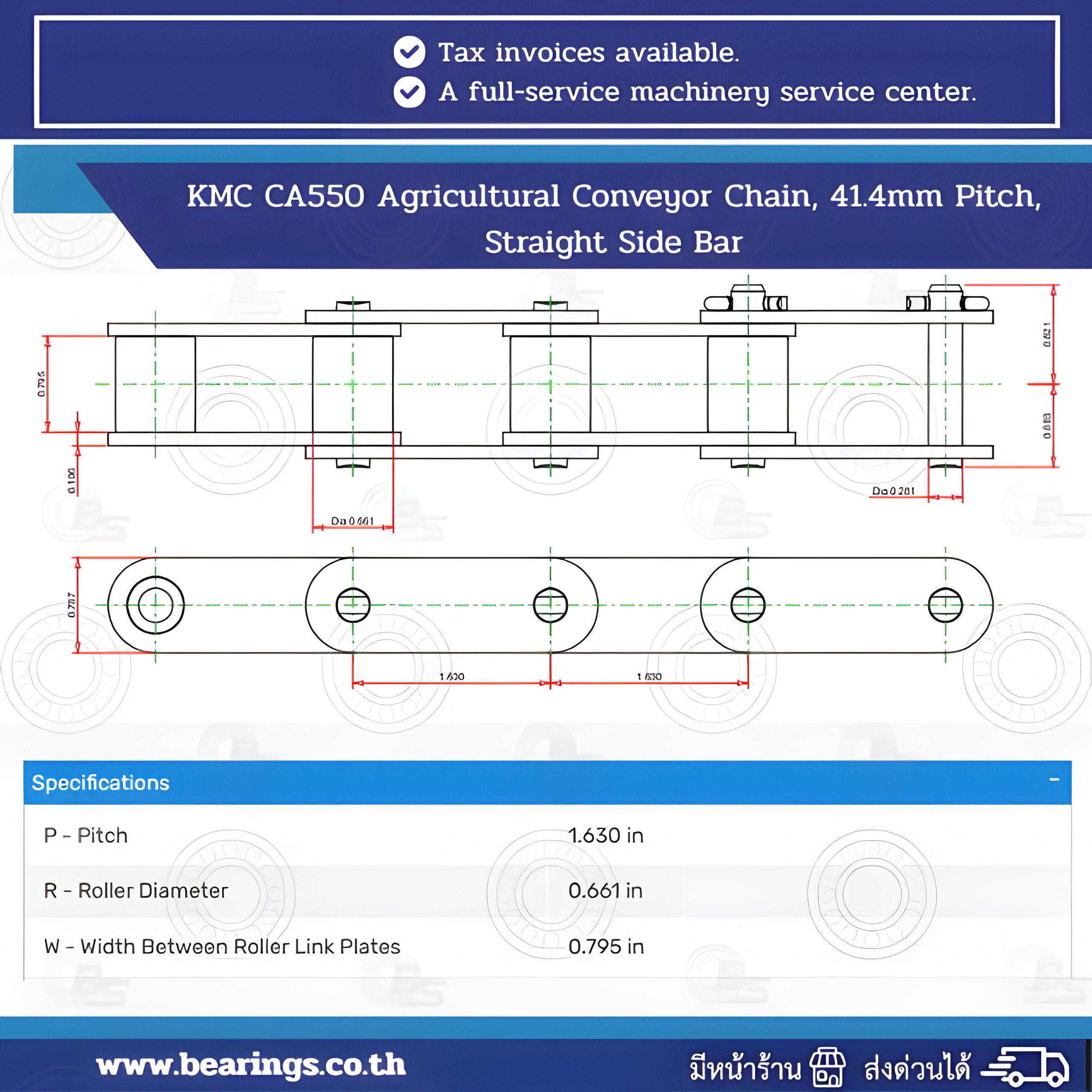

Technical Specifications
- MPN: KMC CA550 Agricultural Conveyor Chain, 41.4mm Pitch, Straight Side Bar
- Pitch (P): 41.40 mm (1.630″)
- Roller Diameter: 16.87 mm (0.656″)
- Width Between Inner Plates: 19.81 mm (0.797″)
- Pin Diameter: 7.19 mm (0.281″)
- Plate Height: 19.30 mm (0.750″)
- Plate Thickness: 2.80 mm (0.105″)
- Average Tensile Strength: 51.2 kN (11,250 lbs)
- Origin: Taiwan
