Thrust Bearings

Thrust bearings are indispensable components in various industrial and mechanical systems, engineered specifically to manage and support axial (thrust) loads while minimizing friction between rotating parts. Unlike radial bearings that handle forces perpendicular to a shaft, thrust bearings ensure smooth operation by preventing axial drift and transferring loads along the shaft’s axis.



What are Thrust Bearings?

At their core, Thrust Bearings typically consist of two precision-machined washers (known as raceways or rings) and a set of rolling elements (either balls or rollers) held in place by a cage. One washer is usually fixed to the stationary housing, while the other rotates with the shaft, allowing for efficient movement under significant axial pressure. This design is crucial for machinery where components might otherwise experience detrimental axial movement or friction.



Applications for Thrust Bearings

The versatility and robust performance of Thrust Bearings make them vital across a broad spectrum of industries and applications, including:

  • Automotive Industry: Essential in gearboxes, clutches, and transmissions, particularly with helical gears that generate axial forces.
  • Heavy-Duty & Industrial Machinery: Found in drills, cranes, industrial fans, pumps, compressors, and various machinery with rotating shafts.
  • Power Generation: Critical for generators and water turbines, where they mitigate friction and drag.
  • Mining & Construction: Utilized in demanding environments due to their corrosion-resistant properties and high load capacities.
  • Precision Equipment: Employed in printer peripheral equipment, ball screw support sections for precision positioning stages, and certain medical instruments.
  • Transportation: Enhance the power and efficiency of engines and propellers.

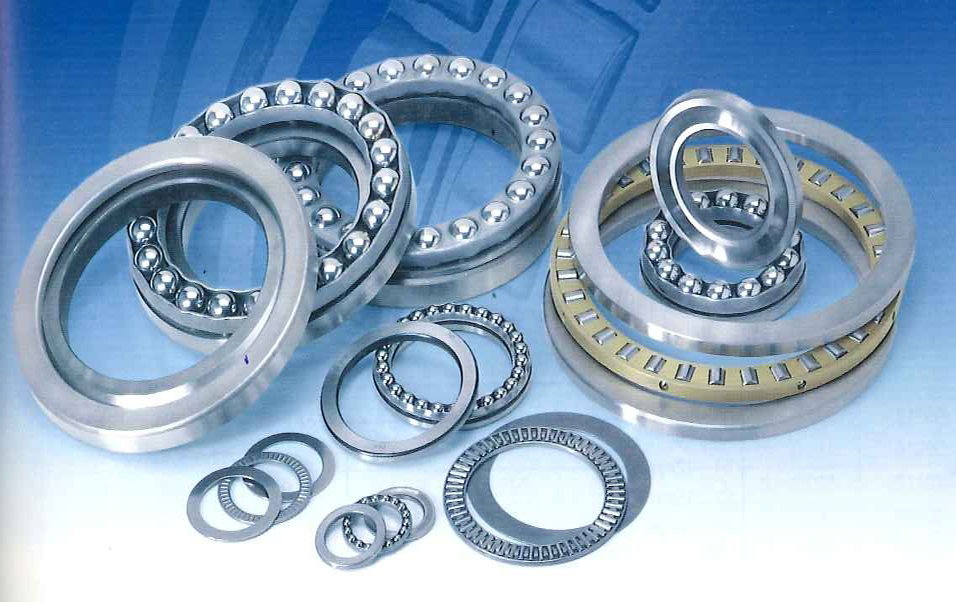

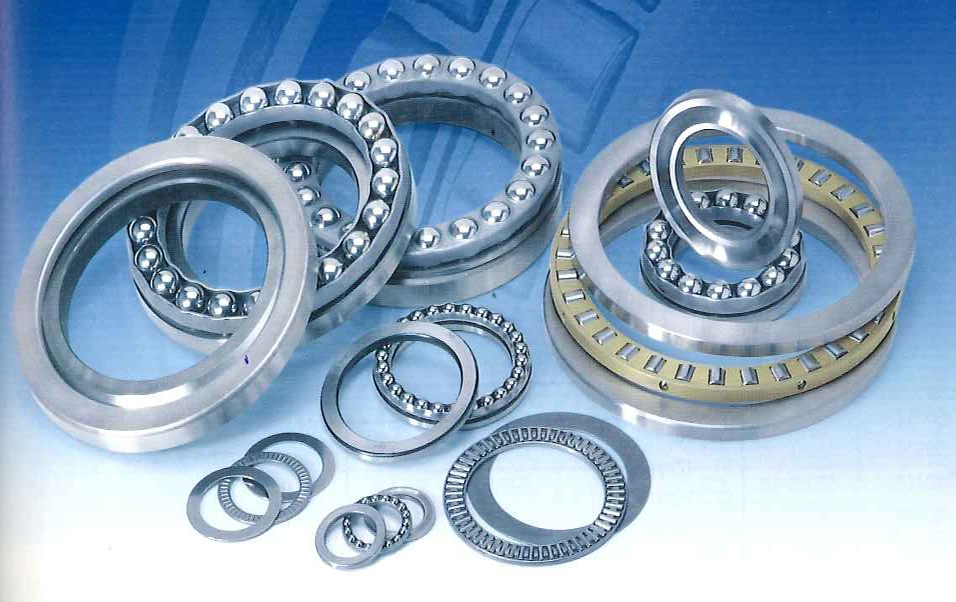

Types of Thrust Bearings

Thrust Bearings come in several configurations, each designed to meet specific load and application requirements:

  • Thrust Ball Bearings: The most common type, using small metal balls as rolling elements. They are available in:
    • Single-Direction: Support axial loads in one direction only.
    • Double-Direction: Handle axial loads from both directions.
    • Flat Seat & Aligning Seat: Differ in the shape of their housing washer, with aligning seat types accommodating initial misalignment.
    • Miniature Thrust Ball Bearings: Ideal for compact applications requiring pure axial support.
  • Cylindrical Thrust Roller Bearings: Utilize cylindrical rollers for higher load-carrying capacity.
  • Tapered Roller Thrust Bearings: Designed for very high axial loads and can often handle some radial loads.
  • Spherical Roller Thrust Bearings: Offer high load capacity and are self-aligning, compensating for shaft deflection or misalignment.
  • Needle Thrust Retainers: Compact solutions often paired with thrust washers.



Mechanics of Different Types of Thrust Bearings

The fundamental mechanics involve the rolling elements facilitating smooth rotation between the two washers, thereby reducing friction and supporting the axial force.

  • Thrust Ball Bearings: The balls roll within raceway grooves, providing precise movement. Single-direction bearings have one set of balls and raceways, while double-direction bearings have two. Sphered housing washers allow for initial misalignment, ensuring adaptability in less-than-perfect alignment scenarios.
  • Thrust Roller Bearings (Cylindrical, Tapered, Spherical): These types use rollers instead of balls, distributing the load over a larger contact area. This enables them to support significantly heavier axial loads compared to ball bearings. Spherical roller thrust bearings, with their barrel-shaped rollers, inherently offer self-aligning capabilities, making them resilient to minor shaft misalignments.



What Industries Use Thrust Bearings?

From the heavy demands of Mining & Construction to the precision required in Aerospace Navigation Systems and Medical Imaging Equipment, Thrust Bearings are integral. They are essential in Industrial Transmissions, Pulp & Paper Mills, Injection Molding Machines, and various Gearboxes.



Buy Genuine Thrust Bearings from www.bearings.co.th

For genuine and reliable Thrust Bearings and power transmission products, trust www.bearings.co.th. As the largest distributor in Thailand, with over 20 years of local and 60 years of Asian market experience, we provide high-quality solutions for all your industrial needs. Our extensive inventory includes top brands and various types of Thrust Bearings to ensure optimal performance and longevity for your machinery.

We are proud to be an authorized distributor for world-renowned brands, ensuring you receive only the most reliable and high-performance Thrust Bearings and related components:

  • NIS Bearings: Offers robust Thrust roller bearings (e.g., AS, WS, GS types) and Single-direction thrust ball bearings (e.g., Item Number 0-6 NIS with dimensions like Inner (d) 19.05 MM, Outer (D) 38.89 MM, Width (B) 15.88 MM). NIS also provides Deep Groove Ball Bearings and other bearing units.
  • FENNER: Renowned for power transmission, Fenner Drives offers specialized Thrust washers (flat, keyed, tabbed), Ball thrust retainers (also called thrust bearing cages), and Needle thrust retainers. They also provide Taper Lock Bush models (e.g., 1108, 1210, 1008) which are crucial for mounting pulleys and sprockets onto shafts. Fenner’s focus on composite mounted bearings and various belts (V-belts, timing belts) complements their bearing offerings.
  • OPTIBELT: A leader in power transmission belts, Optibelt offers a wide range of V-belts and Taper Bushes (e.g., OPTIBELT Taper Bush 1008, 2012-30 mm), which are frequently used alongside Thrust Bearings in power transmission systems for secure component mounting. While not manufacturing thrust bearings directly, their products are integral to the systems where thrust bearings operate.
  • TIMKEN: A global leader, Timken offers a comprehensive range of bearings, including various Thrust Bearings known for their durability and performance.
  • REXNORD: Known for a wide array of power transmission components, Rexnord supplies high-quality bearings, including types of Thrust Bearings.
  • RENOLD: Specializes in industrial chains and power transmission, often used in conjunction with bearings in heavy-duty applications.
  • NSK: A major manufacturer of precision bearings, NSK provides high-quality Thrust Ball Bearings in single-direction and double-direction designs, known for supporting axial loads in applications like printer peripheral equipment and ball screw support sections.
  • MTM, Lovejoy, Link-Belt, Larzep, FALK, Enerpac, Bonfiglioli, Bega, AYA: These brands further strengthen our portfolio, offering a diverse range of industrial solutions that often incorporate or work in tandem with Thrust Bearings.



Thrust Bearings Usage with Belt & Taper Bush

Thrust Bearings are frequently used in conjunction with Belts and Taper Bushes in power transmission systems. Belts (like those from Optibelt or Fenner) transmit power between shafts via pulleys. These pulleys are often mounted onto shafts using Taper Bushes (from Optibelt or Fenner), which provide a secure, backlash-free connection. The entire assembly, especially under conditions involving axial forces, relies on Thrust Bearings to ensure efficient rotation and prevent wear.
