Description

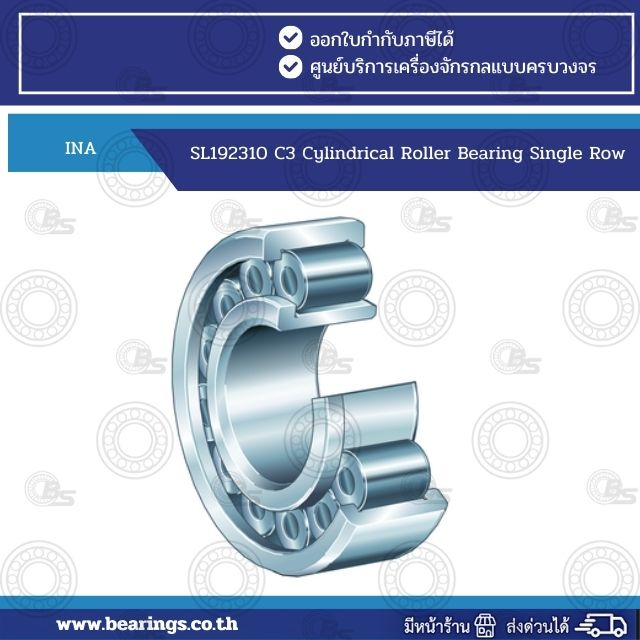

SL192310 C3 INA is a single-row, full-complement cylindrical roller bearing.

This bearing type has solid inner and outer rings and a high number of cylindrical rollers. The rollers are guided by the ribs of the rings. Since there is no cage, the maximum number of rollers can be accommodated, allowing the bearing to support very high radial loads.

However, the maximum operating speed is lower than that of cylindrical roller bearings with cages.

Single-row full-complement cylindrical roller bearings can also support axial loads in one direction. They are typically used as support bearings. Support bearings allow axial displacement of the shaft relative to the housing in one direction, while the shaft is axially located in the opposite direction.

Product Properties

Bore: C – Cylindrical bore

Seal :No seal

Cage Type: FC – Full complement, no cage

External Modification
No external modification

Radial Internal Play: C3 internal clearance (greater than normal Cn)

Precision: Standard precision

Heat Stabilization: No heat stabilization – suitable for temperatures up to 120°C
