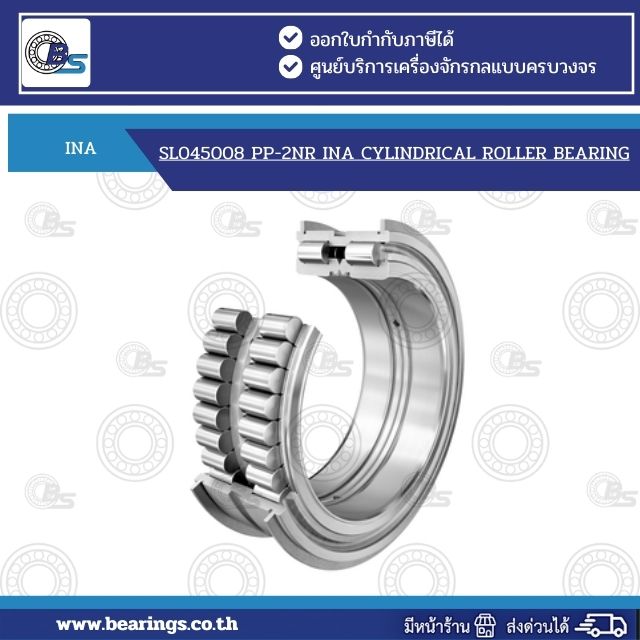

The SL045008 PP-2NR INA CYLINDRICAL ROLLER BEARING is a full complement bearing designed for heavy-duty radial load applications. Featuring contact seals on both sides and a pre-installed snap ring, it provides excellent protection against dust and contaminants and allows for fast, reliable installation.

Technical Specifications:SL045008 PP-2NR INA CYLINDRICAL ROLLER BEARING

• Bore diameter: 40 mm

• Outer diameter: 68 mm

• Overall width: 38 mm

• Design: Full complement (no cage)

• Seals: Contact seals on both sides

• Precision class: P0 (normal)

• Radial internal clearance: CN

• Weight: 0.56 kg

Key Features:

• High radial load capacity for industrial and heavy machinery applications

• Sealed design protects against dust, dirt, and contaminants

• Snap ring groove with pre-installed snap ring simplifies installation and ensures proper axial positioning

• Suitable for moderate to low-speed operation

Applications:
This bearing is ideal for:

• Gearboxes and transmissions

• Conveyor rollers and material handling systems

• Heavy industrial machinery, such as metal forming machines, injection molding, cranes, and excavators

• Large electric motors and generators

• Railway bogies and axle boxes

Benefits:

• Reduced maintenance and downtime

• Long service life even under heavy radial loads

• Easy and secure installation in limited space
