Description

PEX B 58 C OPTIBELT COUPLING

PEX B 58 C OPTIBELT COUPLINGis a robust, fail-safe, two-part plug-in/jaw coupling designed for high-torque applications requiring torsional flexibility and vibration damping.

Key Specifications

• Type: PEX Type B

• Size: 58

• Nominal Torque: 19

• Maximum Rotational Speed: 7500rpm

• Maximum Bore Diameter: 19mm

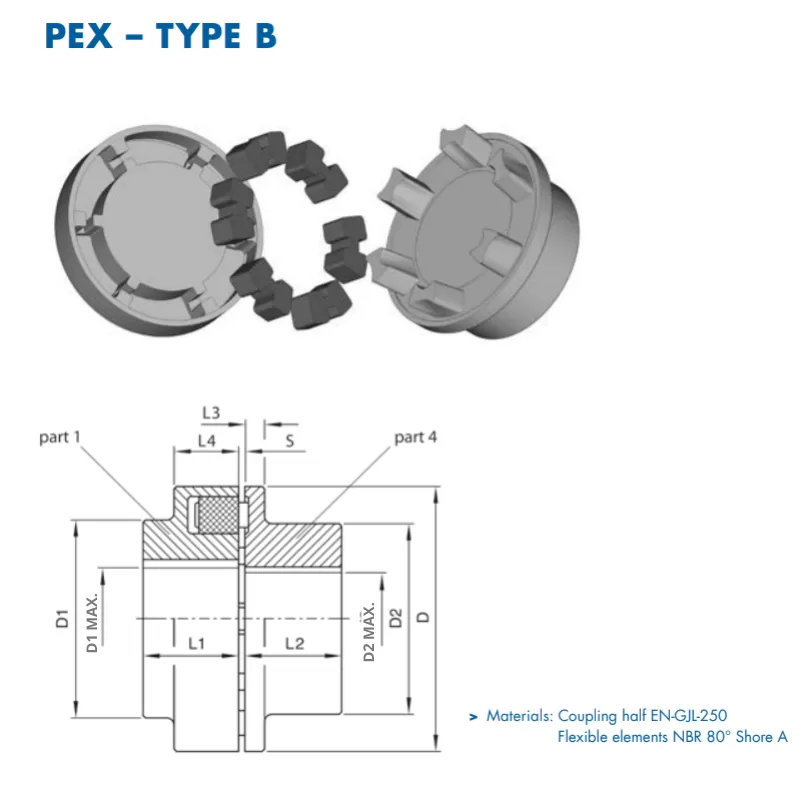

• Materials:

  • Coupling Halves: EN-GJL-250 cast iron

  • Flexible Elements: NBR (Nitrile Butadiene Rubber), 80° Shore A hardness

• Misalignment Compensation:

  • Axial: 0.2 mm

  • Radial: 0.2 mm

  Features & Benefits

  • Fail-Safe Design: Ensures continued operation up to the fracture point of the cast iron transmission cam, providing maximum operational safety.

  • Vibration Damping: The elastomer elements effectively dampen shocks, torsional vibrations, and noise, contributing to smoother operation.

  • Easy Installation: Axial plug-in design allows for straightforward assembly without the need for precise alignment.

  • Maintenance-Free: Designed for longevity without the need for regular maintenance.
