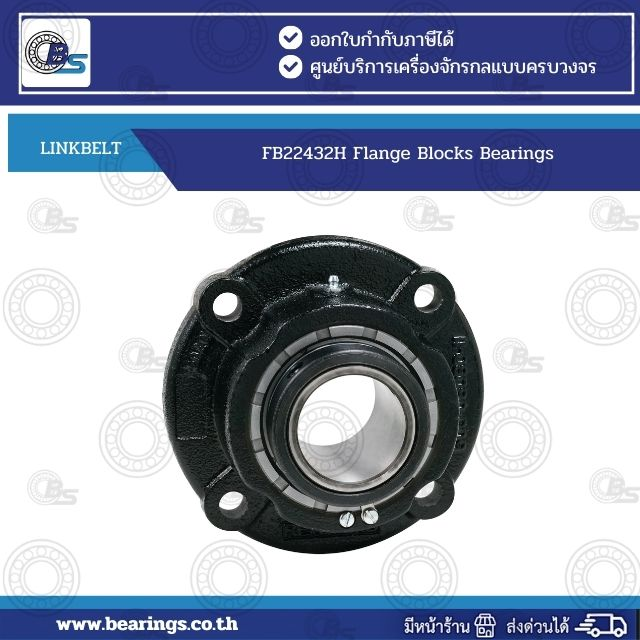

LINKBELT FB22432H Flange Blocks Bearings

This is the LINK-BELT FB22432H Flange Block Bearing | Flanged Spherical Roller Bearing — a high-quality flange bearing unit featuring robust construction, easy maintenance, excellent misalignment capability, and strong performance for heavy-duty industrial applications.

Add to quote
Categories: , Tags: , , , , , , , Brand:

Description

LINKBELT FB22432H Flange Blocks Bearings

This is a four-bolt flange mounted spherical roller bearing unit designed as a fixed (non-expansion) type with a solid cast iron housing. It is suitable for standard-duty industrial applications requiring durability, reliability, and ease of maintenance.

Key features:

  • Spherical roller bearing capable of handling high radial loads and accommodating dynamic shaft misalignment

  • Standard radial clearance (C0 / CN)

  • Single set screw locking collar for secure shaft locking

  • Primary steel clearance seal, with optional lip, labyrinth, or triple-lip seal configurations

  • Relubricatable design, pre-filled with lithium complex grease

  • Powder-coated black cast iron housing for corrosion resistance

  • Designed for industrial operating speeds and temperatures

  • Provides high dynamic and static load capacity

  • Ideal for conveyors, general machinery, and continuous-operation equipment

Overall, this unit is a robust, low-maintenance flange bearing solution that offers good misalignment capability and long service life in typical industrial environments.

Additional information

Fixed/Expansion:

Fixed
Housing Construction:

Solid
Housing Material:

Cast Iron
Housing Style:

Flange Block
Housing Type:

Flange, Four Bolt
Radial Clearance:

C0 STANDARD
Seal Type:

Clearance Seal
Ability to Relubricate:

Yes
Available Seal Type:

E Lip Seal; H Labyrinth Seal; E7 Triple Lip Seal
Bolt Circle (in):

5.75 in
Bolt Size (in):

1/2 in
Bolt Spacing (in):

4.06 in
Bore Diameter (in):

2 in
Cage Material:

Steel
End Cap:

B432DTC
Foot Height (in):

0.69 in
Grease Fitting Thread Size:

1/8 NPT
Height:

7.25
Housing Cast Face to Outermost Bearing Face (in):

0.66 in
Housing Coating:

POWDER COATED
Housing Color:

Black
Housing Outside Diameter (in):

7 in
Inner Ring Outside Diameter (in):

2.307 in
Insert:

B432L
Length:

7.25
Length Through Bore (in):

3.13 in
Locking Collar Outside Diameter (in):

2.88 in
Locking Device Kit:

B432SC
Lubricant:

Lithium Complex NLGI 2 Grease
Max Operating Temperature (C):

107 C
Max Operating Temperature (F):

225 F
Maximum Speed (RPM):

2800 rpm
Microlock Kit:

B436MLK
Misalignment Capability:

±2.0° Misalignment – Dynamic
Misalignment Type:

Dynamic
Net Weight:

10.81
Overall Height (in):

3.19 in
Overall Length (in):

7 in
Overall Width (in):

7 in
Primary Seal:

STEEL CLEARANCE SEAL
Radial Dynamic Load Capacity (lb):

25900 lb
Rolling Element:

Spherical Roller
Seal Kit:

B432HS
Setscrew Torque (in-lbs):

325 in/lbs
Shaft Locking Type:

Single Set Collar
Size Code:

B432
Standoff Distance (in):

0.06 in
Static Load Rating (lb):

33200 lb
Unit of Dimension:

IN
Vibration Frequency Fundamental Train:

0.0072 cps
Vibration Frequency Inner Ring Defect:

0.1617 cps
Vibration Frequency Outer Ring Defect:

0.1217 cps
Vibration Frequency Roller Spin:

0.0559 cps
Weight unit:

LB
Width:

3.50
